Description
Finally a ECU that is engineered for the performance enthusiasts, the professional installers and engine tuners in mind !

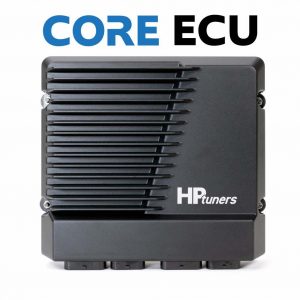

HPtuners CORE ECU offers advanced tuning features like real-time adjustments, 16 injector support, and full data logging !
An all-new designed standalone ECU, currently supporting the GM LS platforms.
Programming CORE ECU is the newest addition to our software lineup, with VCM Live either in house here at our dyno facility or remotely tuning is also available.
The hardware, firmware, and software are designed to work in harmony to control your engine’s operation and with your vehicles specifications with ease and reliability!
SUPPORTED LS ENGINES*** (AT THE MOMENT) ARE :
- LS1/Early LS2/LS3/LS6/LS7/LS9/LSA
- 58 Tooth Count Reluctor Ring
CORE FEATURES:
- 1-16 Fuel Injector Control
- 8 Coil Pack Control
- Sequential Fuel Injection.
- Flex Fuel Supported.
- Dual Throttle Body Capability.
- 2-Built-In Lambda Controllers for AFR data.
- Internal Data Logging – Up to 150 Channels at 1 kHz
- 3 CAN Bus Networks (2 CAN and 1 HPT Net) and Ethernet Connectivity.
- Boost Controller.
- Progressive Nitrous Control for Single-Stage On/Off
- Launch Controller
- Map Switching.
- A/C Controls, Alternator Controls, and much more
Available Functions:
- Progressive Nitrous Controller
- Boost Controller
- Automatic Transmission Controls for 4L60e and 4L80e
- Drive By Wire or by cable
- Secondary Fuel Injectors for street or drag use
- Flex Fuel Input for different fuel types
- Closed Loop O2 Control – Including Short Term Fuel Trims
- Spark Knock Control
- Engine REV Protection
- Map Switching
- Launch Control Options
- Traction Control Options
***More engine support is coming soon!
This controller provides all the necessary sensor interfaces, ignition drivers, injection drivers, and output drive stages required for total engine control.
CORE ECU is intended for use in exempt vehicles such as pre-emissions motor vehicles and documented competition vehicles that are exclusively for track use and not driven on public roads. HP Tuners does not condone the misuse of its products. All users are required to register their CORE ECU and identify the vehicle application before installation and use. Misuse of the CORE ECU will void ANY warranty.
